How to Calculate Subnet Mask from IP Address Step by Step

In as much as there are a great number of articles on the subject of subnetting, I have also taken a bold step in creating a step by step guide “How to Calculate Subnet Mask from IP Address Step by Step” to bring you the understanding I have gained in the real world where subnetting is concerned.





Have you been faced with a task laced with many prefixes you find intimidating? Well, you are in the right place at the right time to improve your understanding of subnetting once and for all.

You can read more on the subject broadly from Cisco’s website here.

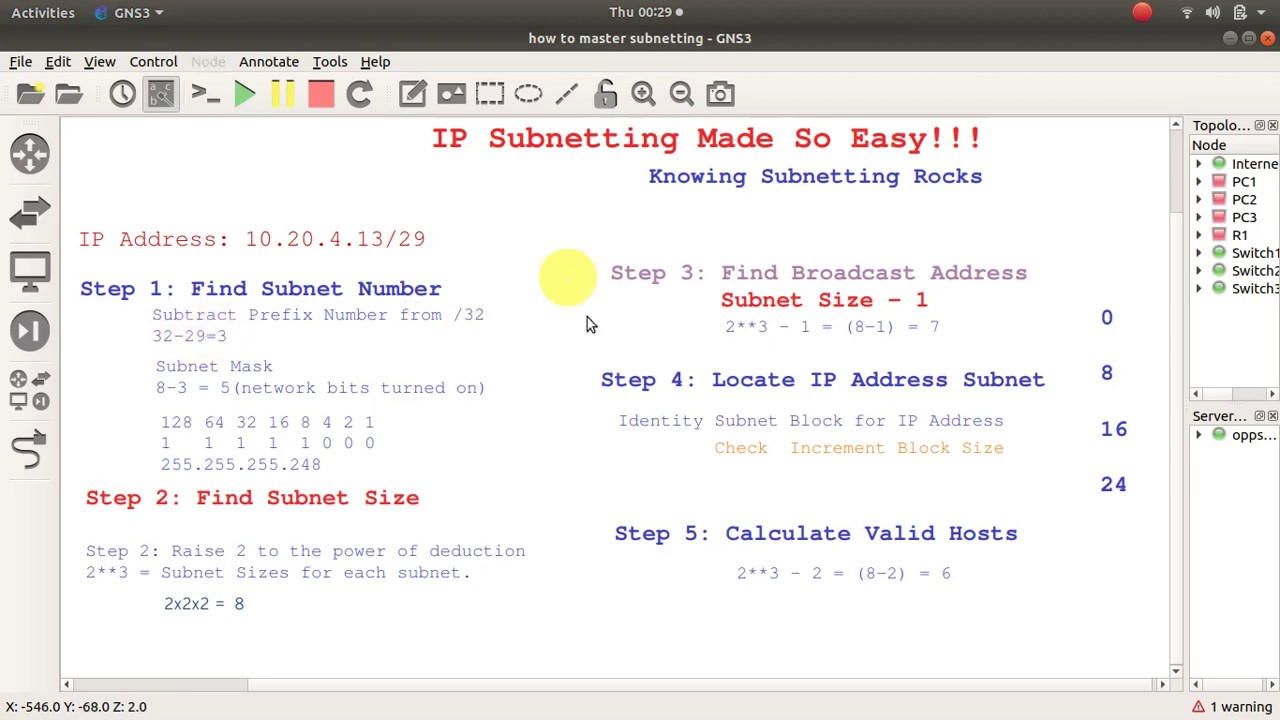

Step by step guide to IP Subnetting Video

Below is a simple 6 step by step method I use to perform subnetting calculations.

Let us look at this question below;

1: You have been given an IP Address 10.20.4.13/29 and been asked to find out the following pieces;

  1. Subnet Address
  2. First Valid Host Address
  3. Last Valid Host Address
  4. Broadcast Address
  5. Subnet Mask

How to Calculate Subnet Mask from IP Address Step by Step

Step 1: Find Subnet Number
Subtract Prefix Number from /32
32-29=3

Calculate Subnet Mask
8 Bits – 3 Bits = 5 Bits(Network Bits Turned On)

You might be asking why 8 Bits, 8 Bits are required for each octet.

128 64 32 16 8 4 2 1
1 1 1 1 1 0 0 0
128 + 64 + 32 + 16 + 8 = 248

Subnet Mask = 255.255.255.248

Step 2: Find Subnet Size
Raise 2 to the power of deduction (8-3 =5 Bits). Let’s call the bits n!
2**n = Subnet Size
2**5 = Subnet Sizes for each subnet.
2*2*2 = 8

Note: 8 is the block size for the subnet so for example, the increments will now be 0 8 16 32 40 and so on!

Step 3: Find Broadcast Address
Subnet Size – 1
(2**n) – 1 = Broadcast Address
(2**3) – 1 = (8-1) = 7

Step 4: Locate IP Address Subnet
Identify Subnet Block for IP Address:
Where in each increment is the address 10.20.4.13/29 located 0 8 16 32 40?

13 falls between 8 and 16 and therefore the address is in the valid host range of the subnet 10.20.4.8/29

Step 5: Calculate Valid Hosts | How to calculate number of hosts in the subnet
2**n – 2 = Valid Host Range
2**3 – 2 = (8-2) = 6

Answer for question now is as follows;

Subnet Address: 10.20.4.8/29
Min Host Address: 10.20.4.9/29
Max Host Address: 10.20.4.14/29
Broadcast Address: 10.20.4.15/29

There you have it. A simple 6 step by step guide to subnetting effectively.

Variable Length Subnets Mask Table

Prefix size Network mask Usable hosts per subnet
/1 128.0.0.0 2,147,483,646
/2 192.0.0.0 1,073,741,822
/3 224.0.0.0 536,870,910
/4 240.0.0.0 268,435,454
/5 248.0.0.0 134,217,726
/6 252.0.0.0 67,108,862
/7 254.0.0.0 33,554,430
Class A
/8 255.0.0.0 16,777,214
/9 255.128.0.0 8,388,606
/10 255.192.0.0 4,194,302
/11 255.224.0.0 2,097,150
/12 255.240.0.0 1,048,574
/13 255.248.0.0 524,286
/14 255.252.0.0 262,142
/15 255.254.0.0 131,070
Class B
/16 255.255.0.0 65,534
/17 255.255.128.0 32,766
/18 255.255.192.0 16,382
/19 255.255.224.0 8,190
/20 255.255.240.0 4,094
/21 255.255.248.0 2,046
/22 255.255.252.0 1,022
/23 255.255.254.0 510
Class C
/24 255.255.255.0 254
/25 255.255.255.128 126
/26 255.255.255.192 62
/27 255.255.255.224 30
/28 255.255.255.240 14
/29 255.255.255.248 6
/30 255.255.255.252 2
/31 255.255.255.254 0
/32 255.255.255.255 0
